Описание товара

Световой короб P

Colours:

• Coloured light and coloured objects


• Mixture of colours

 Shadows:

• Casting shadows


• Coloured shadows

Reflection:

• Reflection from a plane mirror


• Reflected images, image reversal


• Multiple reflections from a mirror

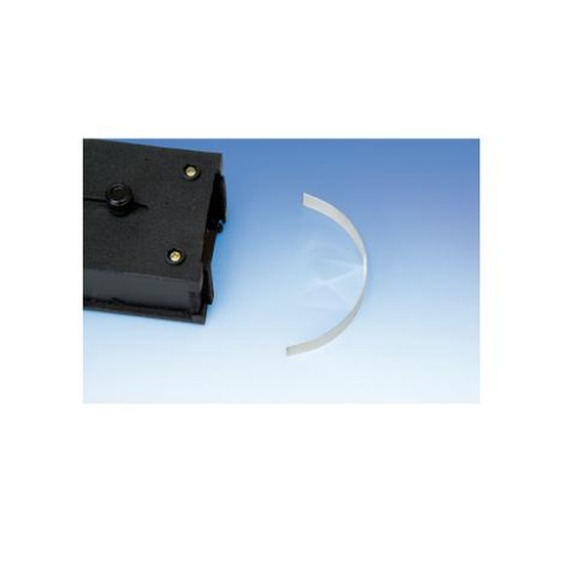

• Reflection from a concave mirror (focal point and spherical aberration)


• Reflection from a parabolic mirror


• Reflection from a convex mirror

 Refraction:

• Determining refractive index with a semi-circular object


• Determining refractive index with a parallel block


• Angle of minimum deflection for a prism


• Total internal reflection in a semi-circular object


• Total internal reflection in a prism


• Focal point of a converging lens


• Focal point of a diverging lens


• Spherical aberration

Equipment set for the execution of bench-based optical experiments, consisting of a light box in a sturdy plastic housing and numerous optical components. The complete set is housed in sturdy styrofoam storage case. The light box has four light outlets: front, back, and two side outlets with hinged mirrors for experiments on color mixing and shadows. All openings are equipped with mounts for optical components in 50 x 50 mm slide frames. Parallel, convergent, and divergent light can be generated by adjusting a mixer lens at the front of the lamp. There are two double-sided slit diaphragms available so that four different beam configurations can be created.

(Note: Power supply not included)

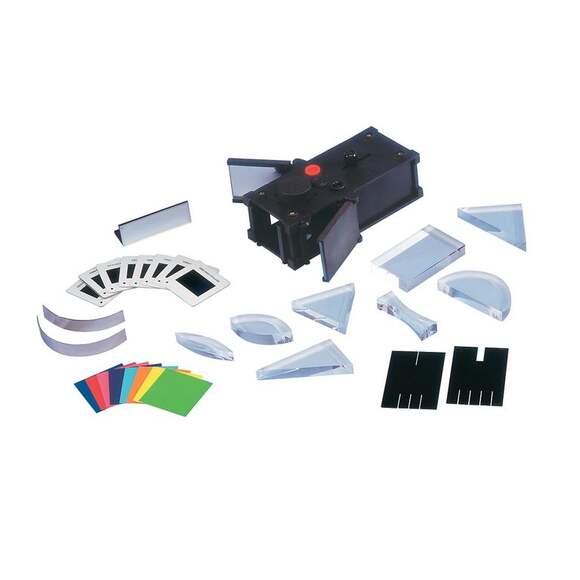

Contents:

• 1 Light box


• 1 Plane mirror (glass)


• 1 Concave mirror (metal)


• 1 Convex mirror (metal)


• 1 Bi-convex lens, large (transparent acrylic)


• 1 Bi-convex lens, small (transparent acrylic)


• 1 Bi-concave lens (transparent acrylic)


• 1 Parallel plate (transparent acrylic)


• 1 Semi-circular object (transparent acrylic)


• 1 60° prism (transparent acrylic)


• 1 Asymmetrical 90° prism (transparent acrylic)


• 1 Symmetrical 90° prism (transparent acrylic)


• 2 Slit diaphragms


• 8 Color filters (in slide frame)


• 8 Color charts


• 1 Pair of connector leads with 4-mm plugs

Specifications:

• Lamp: 12 V, 36 W


• Connections: 4-mm socket


• Light box: 17.5 x 10.0 x 6.5 cm approx.


• Storage case: 25 x 24 x 10 cm approx.
