Описание товара

Комплект для учебных опытов по теме "Механические колебания и волны" (230 В, 50/60 Гц)

Large equipment set for carrying out 23 fundamental experiments on the properties of mechanical oscillations and waves. Stored in a tough Gratnell tray with foam inlay featuring recesses moulded to the shape of the apparatus and covered by a transparent lid. Includes CD with experiment instructions.

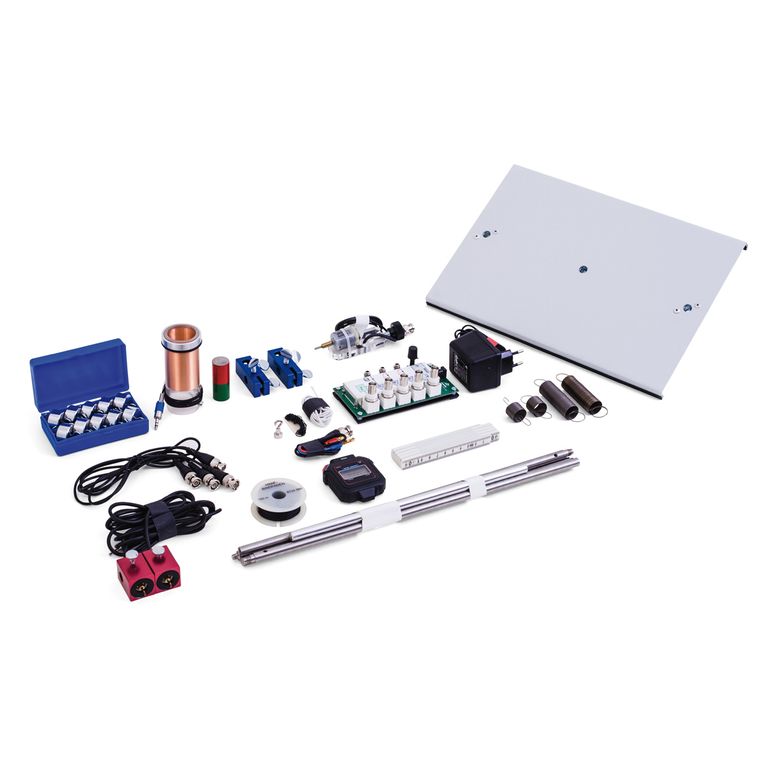

Contents:
1 MEC control unit
1 Plug-in power supply
2 Dynamic force sensors
1 Eccentric axle motor
1 Induction coil
1 Stopwatch
4 Coil springs
1 Set of 10 weights, 50 g
1 Base plate
1 Cross-strut
2 Stand rods with external threads
2 Stand rods with external and internal threads
2 Double clamps
1 Magnetic hooks
1 Bar magnet
1 Rubber cord
1 Roll of twine
1 Thread eyelet
1 Squirrel cage ring
1 Ruler 2 BNC cable, 1 m
1 BNC/4-mm cable

Includes instruction for 23 experiments on mechanical oscillations and waves

• Determining spring constants (2x)

• Oscillations of a spring pendulum *

• Oscillations of two “identical” spring pendulums  * / **

• In-phase and 180° out-of-phase oscillations of two “identical” spring pendulums  * / **

• Excitation of a motionless spring pendulum by a moving one * / **

• Superposition of the oscillations of two spring pendulums * / **

• Spring pendulums connected in line * / **

• Spring pendulums connected parallel to one another * / **

• Intrinsic oscillation of a spring pendulum *

• Types of oscillation for a coil spring pendulum *

• String pendulums (2x)

• Seconds pendulums

• Galileo's interrupted pendulum

• Damped oscillations of string pendulums (2x) *

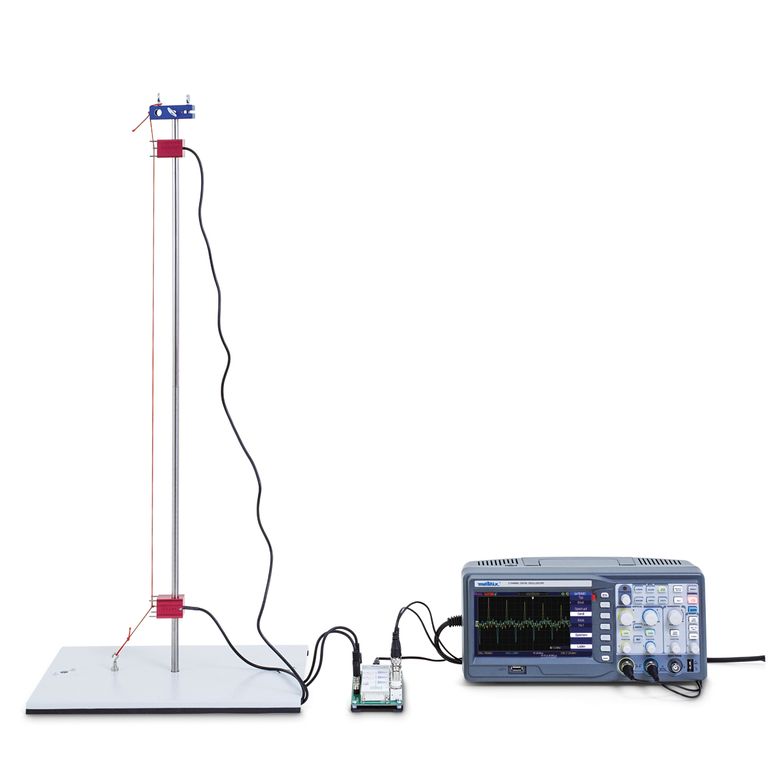

• Standing waves along a rope (2x) *

• Reflection of waves along a rope *

• Speed of propagation of waves along a rope (2x) *

• Oscillation of strings *

Dual-channel oscilloscope (for experiments marked *
e.g. 1020857 PC-Oscilloscope 2x25 MHz

Analogue Multimeter for experiments marked **)
e.g. 1013526 Analogue Multimeter Escola 30
